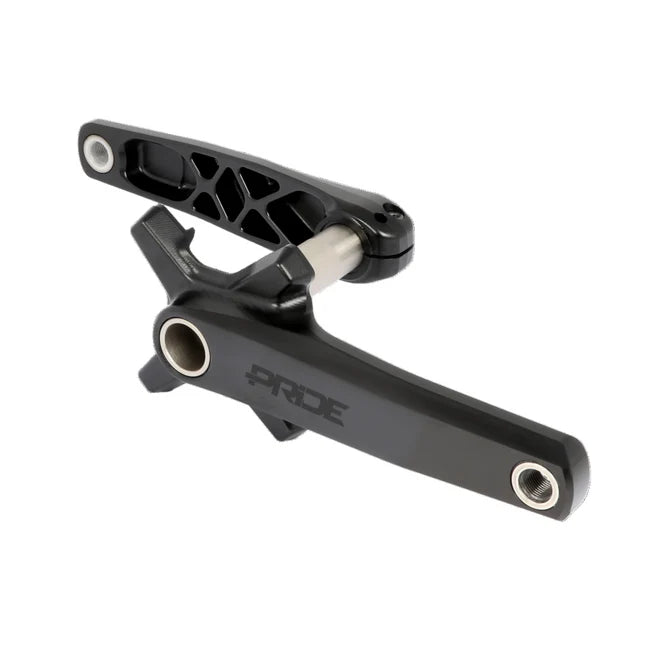

Pride Newton SX Crankset 165mm (Black Gloss)

The Pride Newton SX Crankset is engineered for elite BMX racers who demand maximum performance from gate to finish. Developed using finite element analysis (FEA) to optimise strength, stiffness, and impact resistance under race conditions.

Forged from high-performance 7000 series aluminium, the Newton SX features a waffle forging structure for superior thickness control and structural integrity stiffer and more reliable than hollow forged alternatives. An integrated chainring bolt system eliminates separate bolts for a cleaner, stiffer drivetrain.

Features

• 7000 series aluminium crank arms — forged then machined
• 24mm heat-treated CrMo spindle
• 104BCD 4-bolt chainring pattern
• Waffle forging structure for consistent wall thickness and superior strength
• Integrated chainring bolt system — no separate bolt length selection needed
• Q-Factor: 168mm
• Weight: 738g (175mm) — one of the lightest BMX cranksets available
• Compatible with BB86 and BSA 68/73mm bottom brackets
• Chainline: 43.5mm

Includes: 1 compression bolt, 2 locking bolts, 4 chainring bolts

Tightening Torques

• Chainring bolts: 10 Nm (max)
• Crank arm pinch bolts: 12–14 Nm (max)
• Compression bolt: 2–4 Nm (max)
• Pedals: 30–35 Nm (max)
